CBK 308 intelligent touchless robot car wash machine

Short Description:

Model No. : CBK308

CBK308 is a smart car washer.  It Intelligently detects the three-dimensional size of the car, Intelligently detect the three-dimensional size of the vehicle and clean it according to the size of the vehicle.

Product Superiority:

1.Separation of water and foam.

2.Separation of water and electricity.

3.High Pressure water pump.

4.Adjust the distance between the mechanical arm and the car.

5.Flexible Wash Programming.

6.Uniform speed, uniform pressure, uniform distance.


  • Min.Order Quantity: 1 Set
  • Supply Ability: 300 Sets/Month
  • Product Detail

    Product Tags



    Touchless Car Wash Equipment:



    308

    Product Features:

    1.Spray the car wash foam at 360 degrees.

    2.Up to 12MPa high-pressure water can easily remove the dirt.

    3.Complete 360° rotating within 60 seconds.

    4.Ultrasonic precise positioning.

    5.Automatic computer control operation.

    6.Unique embedded fast air drying system.

    Main Function Introduction:

    main function Instruction
    Operation mode, four 90° turns The robotic arm walks 360° around the body, and the angle of the four corners is 90°, which is closer to the vehicle and shortens the cleaning distance.
    Flush chassis and hubs system Equipped with the function of cleaning the chassis and wheel hub, the nozzle pressure can reach 8-9 MPa.
    Interated chemical mixing system Automatically adjust the ratio of a variety of liquids, including: ordinary car washing liquid, water flooding coating wax, and no-scrub car washing liquid.
    High pressure flushing (standard/strong) The water pressure of the water pump nozzle can reach 10 MPa, and the robot arms of all equipment wash the body at a constant speed and pressure. Two modes (standard/power) can be selected.
    Water wax coating A macromolecular chloride is generated in the car body, which plays a role in preventing acid rain, pollution, and ultraviolet rays.
    Built-in compressed air drying system (all-plastic fan) The built-in air-drying system is equipped with four 5.5 kW fans, which can effectively air-dry the whole body of the vehicle, and there is no dead angle in 360 degrees.
    Intelligent 3D detection system Equipped with advanced ultrasonic sensors, smart photoelectric sensors and closed-loop controllers, it uses an accurate closed-loop detection system to detect the length of the vehicle to ensure stability, safety, and energy saving.
    Intelligent electronic collision avoidance system Carry out vehicle cleaning under the premise of ensuring safety, and carry out safety protection for various emergencies.
    Parking guidance system Guide the vehicle to park by reminding lights to avoid danger.
    Security alarm system When the equipment fails, the light and sound will prompt at the same time, and the equipment will stop running at the same time.
    Remote control Through the Internet of Things technology, complete remote startup, shutdown, reset, diagnosis, upgrade, operation, remote liquid level monitoring and other operations.
    Standby mode If the device is not used for a long time, it will automatically enter the standby state, which can reduce the energy consumption of the device in the idle state by 85%.
    Fault self-check When the equipment is abnormal, start the self-check and alarm procedures, identify the cause of the fault and record the fault code, which is convenient for query and maintenance.
    leakage protection It is used to protect the staff who may get an electric shock in the event of a leakage fault. At the same time, it has overload and short-circuit protection functions, which can be used to protect the circuit and the motor from overload and short-circuit.
    A free upgrade The program version is free to upgrade for life, so that your car washing machine will never be outdated.
    Strengthen the front and rear washing The German PINFL high-pressure industrial water pump is used to ensure that the nozzle water pressure reaches 10 MPa, which can truly achieve high-pressure washing and sweep stubborn stains.
    Water and electricity separation water foam separation No electrical appliances are exposed to the outside of our mainframe rack, and put the control box and wires in the storage room. This ensures safety and reduces failures.
    Separation of water and foam We set up two pipelines to spray water and foam separately, the single foam tube we designed is more than 2/3 less wasteful than the ordinary car washing machine.
    Direct drive system The use of new direct drive technology has greatly improved the energy saving, safety and stability of the equipment.
    Bubble waterfall(Add this feature for another $550) Color foam spraying to form a waterfall, achieving high cleaning effect.
    Hot dip galvanized frame double anticorrosive The overall hot-dip galvanized frame is anti-corrosive and wear-resistant for up to 30 years, and can be simply adjusted according to the installation height.
    L arm can move left and right, automatic measurement
    of vehicle width
    Through intelligent measurement, the cross arm is moved to a distance of 35cm from the vehicle body to realize the close-to-cleaning of the vehicle body.
    Clean the rearview mirror The spray head sprays liquid at a 45° angle, easily flushing the rearview mirror and other angular positions.
    Frequency conversion energy saving system Advanced frequency conversion technology realizes the stage adjustment of chassis flushing water pressure, body flushing water pressure, and body drying air pressure. Various pressures can be adjusted according to the adjustment of climate and temperature to achieve the maximum optimization of energy saving and cleaning effects.
    Oil free (reducer 、 bearing) Equipped with NSK bearings originating in Japan as standard, which is oil-free and fully sealed, and is maintenance-free for life.



    Introduction of Product Operation Steps:

    Step 1  Chassis wash

    Adopt Germany PinFL advanced industrial water pump, international quality, real water knife high pressure washing

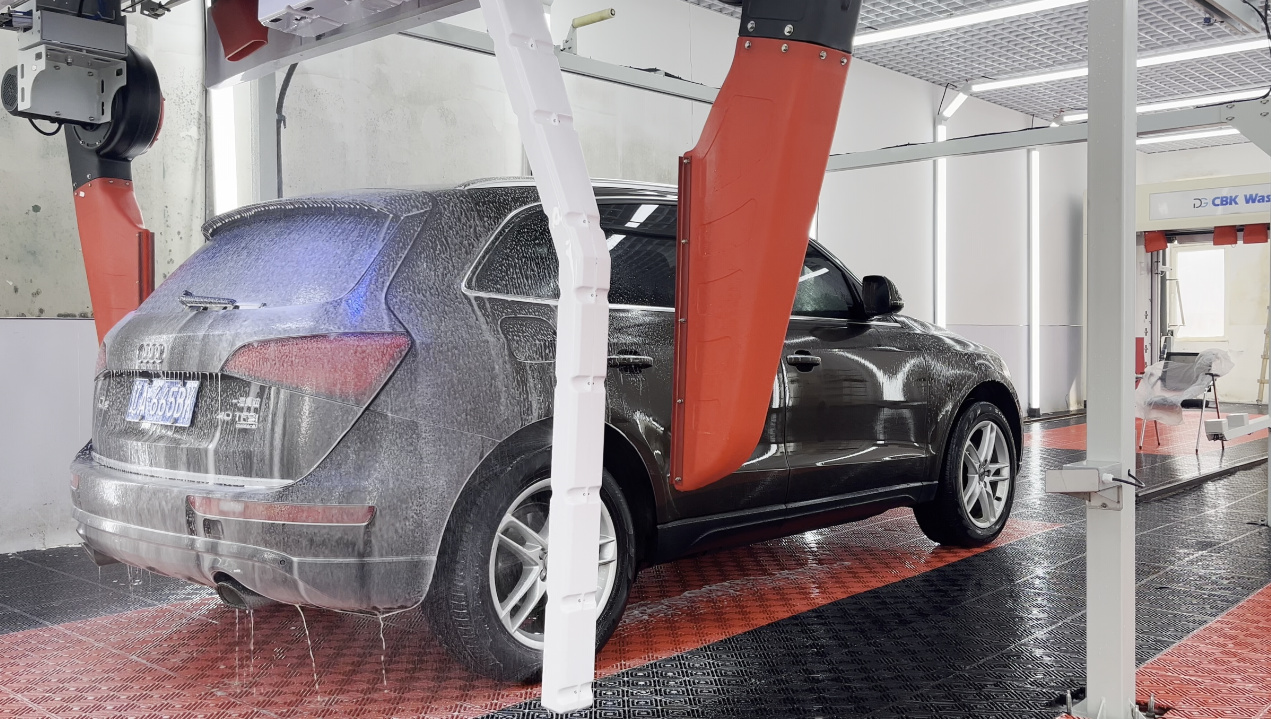

    Step 2  360 spray shampoo

    CBK308 intelligent touchfree robot car wash machine can automatically mix the car wash liquid according to the customer’s requirement,and spray the shampoo sequentially


    Step 3  High pressure washing

    High quality stainless steel 25 degree sector spray, water saving and powerful cleaning is not contradictory

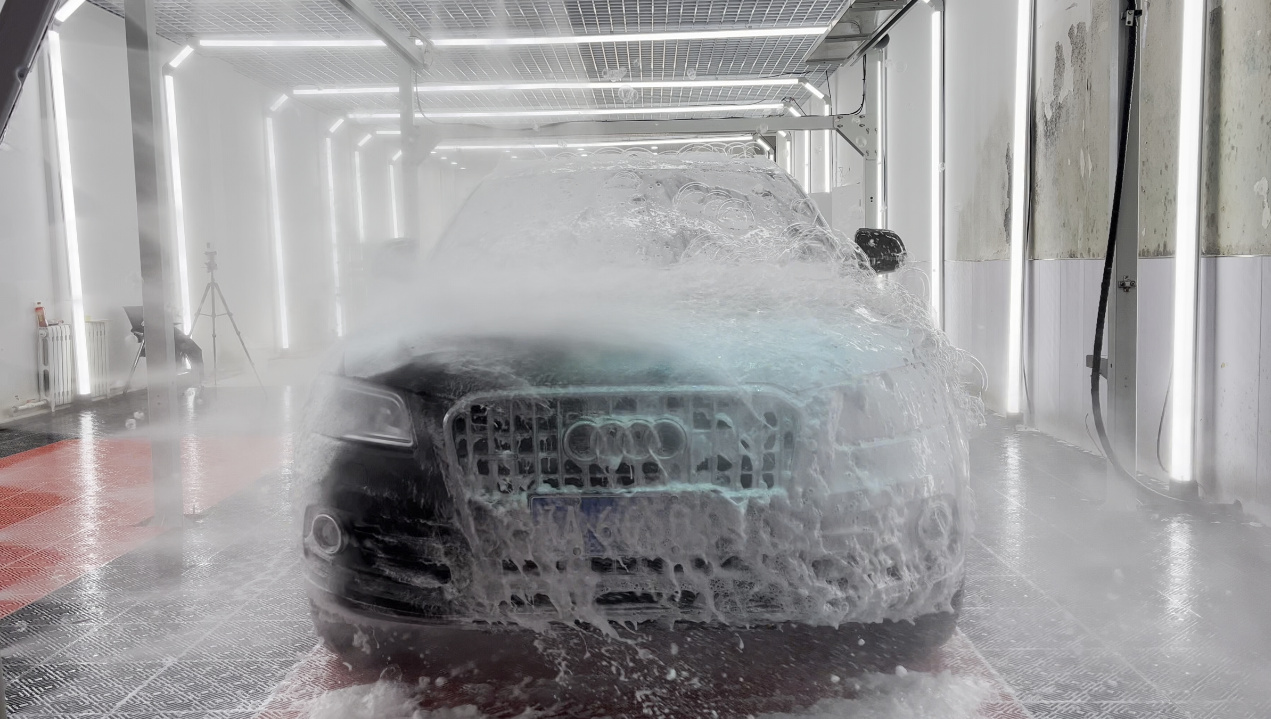

    Step 4  Colorful Foam

    Rich bubble is evenly sprayed in every place of the body, for better visual effect, so that the car wash effect is better and the car paint maintenance


    Step 5 Wax rain

    Water wax can form a layer of high molecular polymer on the surface of the car paint. If there is a layer of protective cover for the car paint, it can effectively prevent acid rain and pollution


    Step 6 Air dry

    The built-in all plastic fan works with 4 pcs 5. 5KW. Enlarged vortex shell design, air pressure is greater, air drying effect is better




    Product Features:



    详情页 (1)
    Main Configuration:



    详情页 (11)


    The Installation:

    详情页 (2)

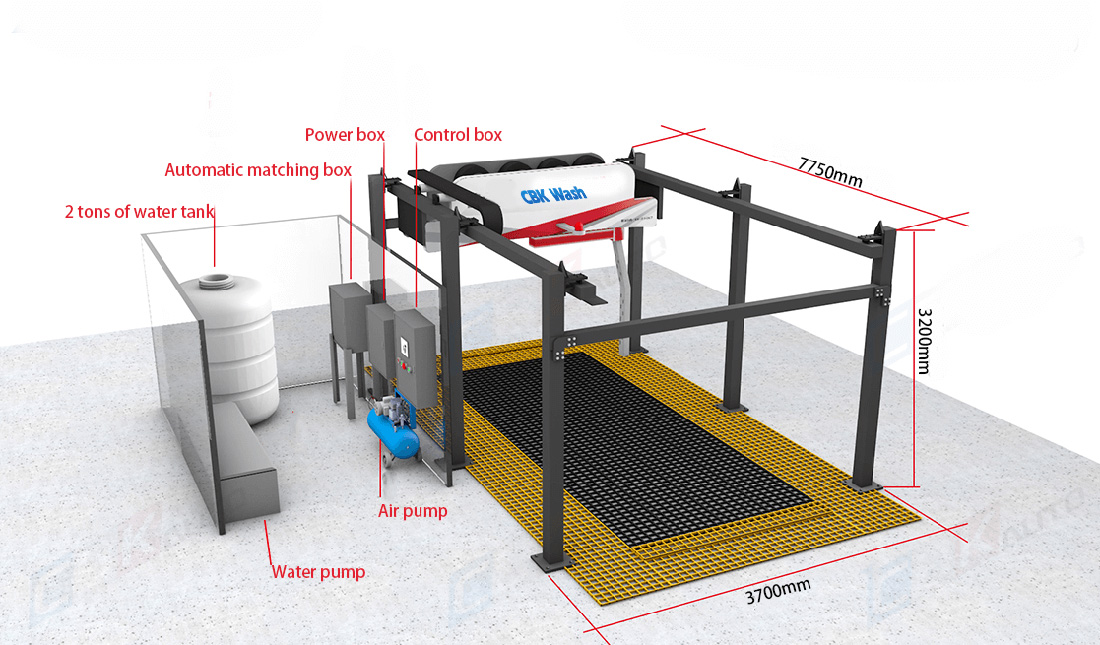

    Installation Diagram:

    CBK 308 3D Diagram1

     Company Profile:



    Factory

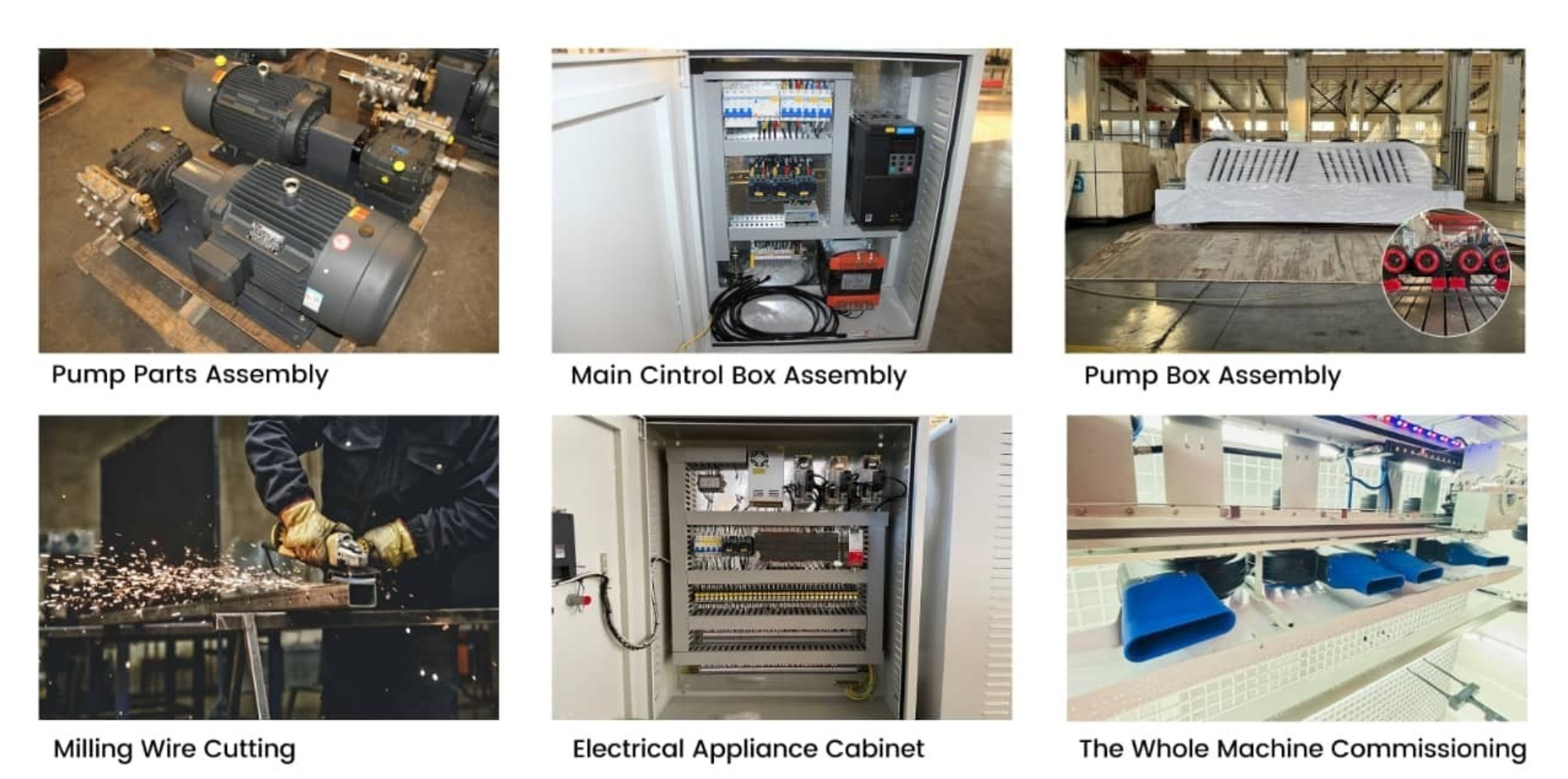

     CBK Workshop:

    微信截图_20210520155827

     Enterprise Certification:

    详情页 (4)

    详情页 (5)

    Ten Core Technologies:

    详情页 (6)



    Technical Strength:

    详情页 (2)详情页 (3)

     Policy Support:

    详情页 (7)

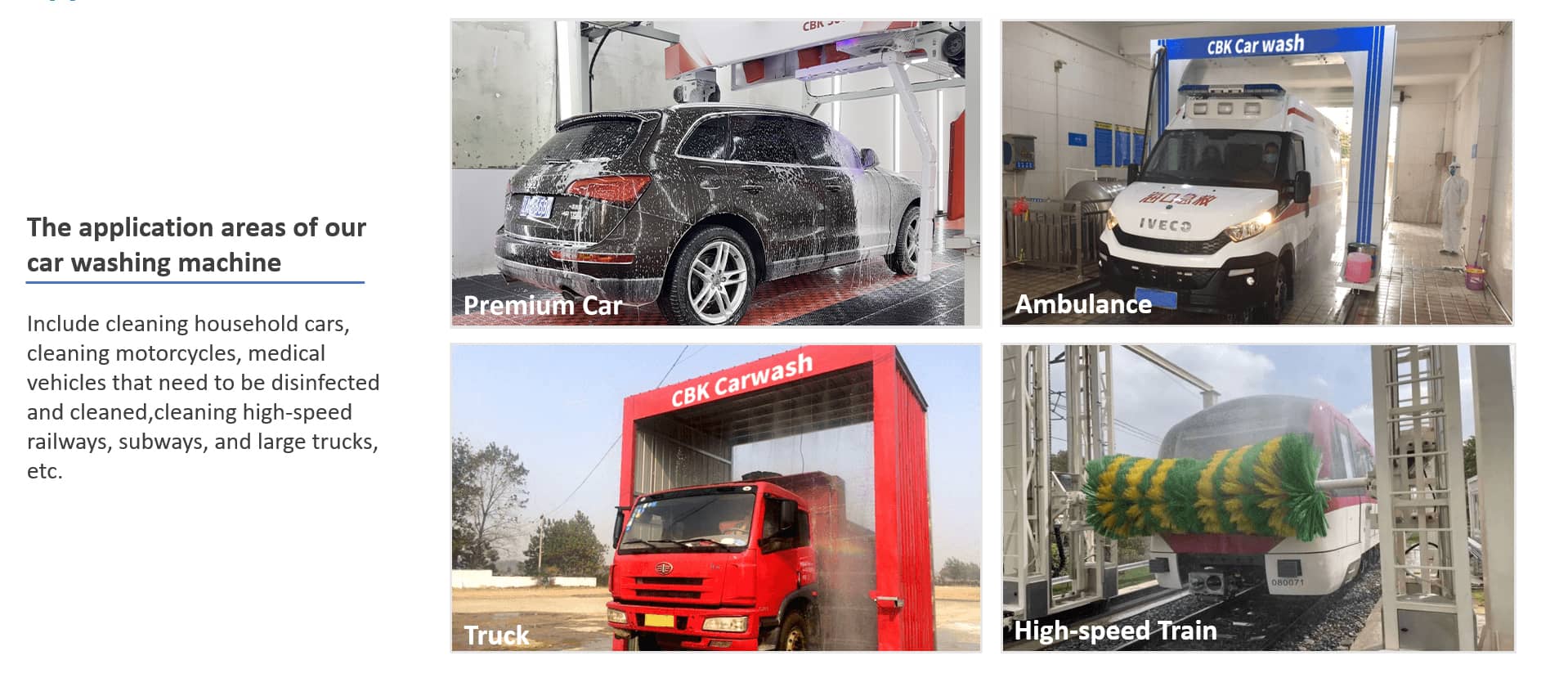

     Application:

    微信截图_20210520155907

    National Patents:

    Anti-shake, easy to install, non-contact new car washing machine

    Soft protection car arm for solving scratched car

    Automatic car washing machine

    Winter antifreeze system of car washing machine

    Anti-overflow and anti-collision automatic car washing arm

    Anti-scratch and anti-collision system during operation of car washing machine



    FAQ:

    1. What's the layout dimensions required for CBKWash installation ? ( Length×width×height )

    CBK108:6800mm*3650mm*3000mm

    CBK208: 6800mm*3800mm*3100mm

    CBK308:8000mm*3800mm*3300mm

    2. What is your biggest car wash size?

    Our biggest car wash size is:5600mm*2600mm*2000mm

    3. How long does your car washing machine take to clean a car?

    Depending on the steps set in the car wash process, it takes 3-5 minutes to wash a car
